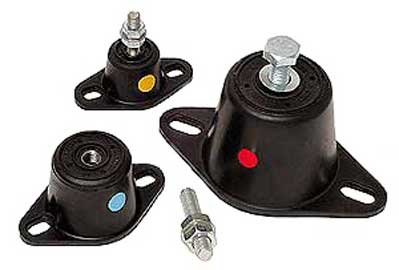

RM - Turret Mountings

Sizes 19.100, 19.101 & 19.102

RM rubber turret mountings are designed to provide superior attenuation of medium to high frequency vibration and noise emanating from a wide range of motor driven machines particularly axial and centrifugal fans.

High resilience rubber with low dynamic to static stiffness ratio ensures maximum efficiency, good creep performance and long service life.

Design Features:
  • Moulded in first grade natural rubber with integral steel base and upper fixing boss.
  • Manufactured in three sizes, each available in three rubber compounds identified by a colour spot.
  • Static deflections of up to 8 mm with loads from 5 kg to 400 kg.
  • Upper fixing screw supplied as standard with optional height adjusters also available.

Typical Applications:

  • Axial and Centrifugal Fans.
  • Air Handling Units.
  • Refrigeration Plant.
  • Pumps.
  • Rotary and Multi Cylinder Compressors.
  • Floating Floors.
  • Isolation of Sensitive Equipment.
  • Test Rigs and Special purpose machines.
