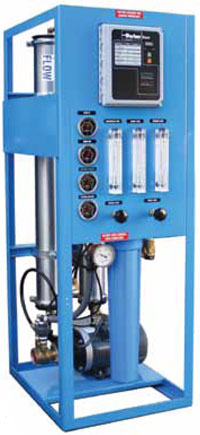

Racor Brackish Water RO Systems

300-19,000 GPD
(1-72 m3/day)

Racor BW systems are designed to produce soft water with reduced dissolved solids from tap or well water sources using high efficiency reverse osmosis membranes. The product water is used in applications such as spot free rinse, water stores, whole house, labs, ice makers, humidification, misting and a wide variety of other applications.

Racor Brackish Water RO systems use proven, reliable components and are mounted on a sturdy powder-coated metal frame. Systems are designed to work at pressures of 150-200PSI. The process design ensures an optimum membrane life by minimizing membrane fouling potential.

Standard Features:

  • Stainless steel high pressure RO pump (on all models above 3000 GPD)
  • Delayed start-up of high pressure pump
  • Automatic membrane flush
  • TFC membranes with 316SS or FRP membrane pressure vessels
  • Panel mounted permeate& concentrate flowmeters
  • Recycle flowmeter
  • System and recycle control valves
  • Storage tank float tree for auto start/stop
  • Powder coated carbon steel frame
  • Permeate quality display with high TDS alarm
  • Low pressure shut-down with auto-restart
  • Pre-treatment backwash/ lockout

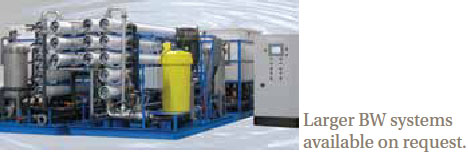

Brackish Water Series for large BW Systems

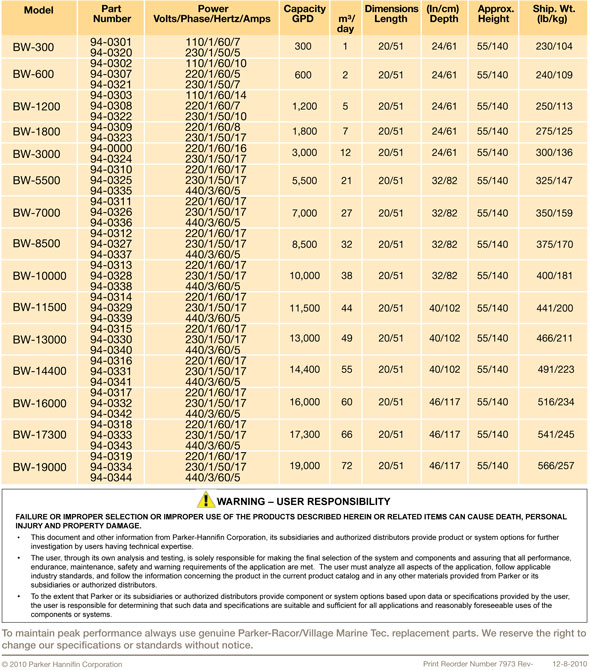

Brackish Water Series Specs
