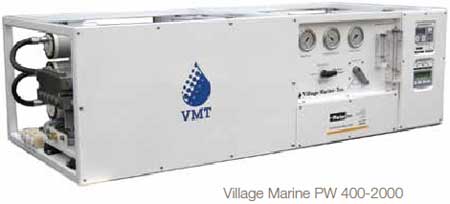

Pure Water Series

400-2000 GPD
(1.5-7.5 m3/day)
For Commercial Marine Applications

The Pure Water (PW) Series is designed to provide installation flexibility, superior performance, and extended service life in the most rugged conditions.

Designed for 24/7, continuousduty applications, where reliable fresh water supply is critical.

The fully framed unit is standard, however semi-modular and fully modular versions are also available.

Standard Features:

  • Monel mesh strainer and dual sediment prefilters.
  • Maintenance-free air/oil separator allows operation while underway.
  • Low RPM five plunger titanium pump for minimum vibration and noise with unsurpassed corrosion resistance.
  • Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system. No mechanical seal to reduce maintenance requirement.
  • Stainless steel, glycerin filled pressure gauges.
  • Freshwater flush system included. Optional automation of the flush system is available.
  • Adjustable 316 SS pressure regulating valve allows use in fresh, brackish or seawater.
  • Easy to operate 316 SS high pressure bypass valve controls the operating mode and allows high pressure bypass for start-up and low pressure flushing without readjustment of regulating valve.

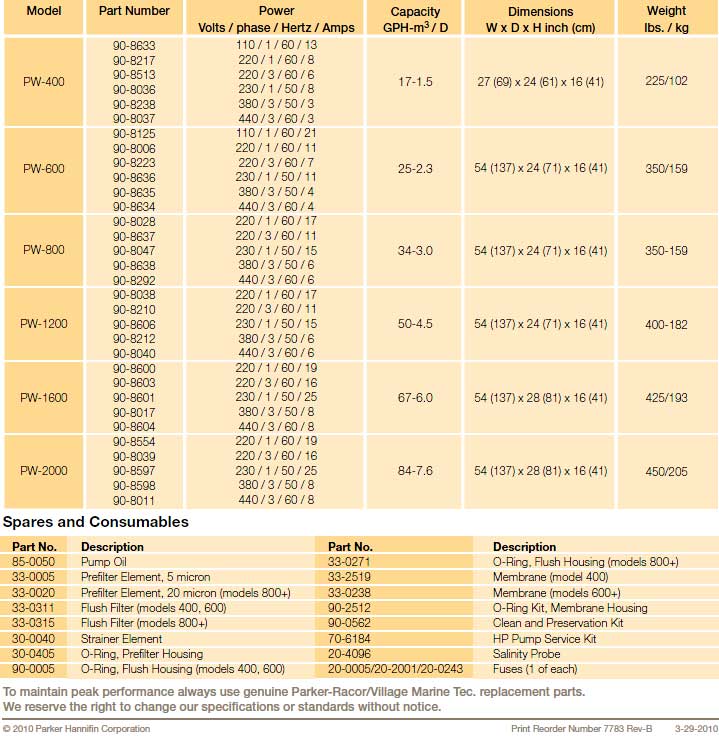

Pure Water Series Specs
